SmallHD FOCUS Pro Oled 3G-SDI Monitor with RED KOMODO Control Kit

Monitor

€ 0.00+iva

ADD TO LIST
  • Display: 5-inch, 1280x720, 294 PPI
  • Input: SDI
  • Output: ⅛” Headphone Jack, Camera Control
  • Power: 2-pin (7-16.8v), 1x Sony L Battery (Not Included)

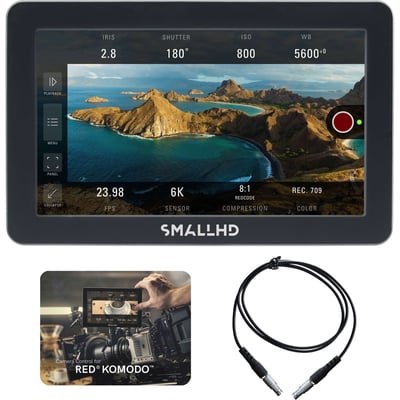

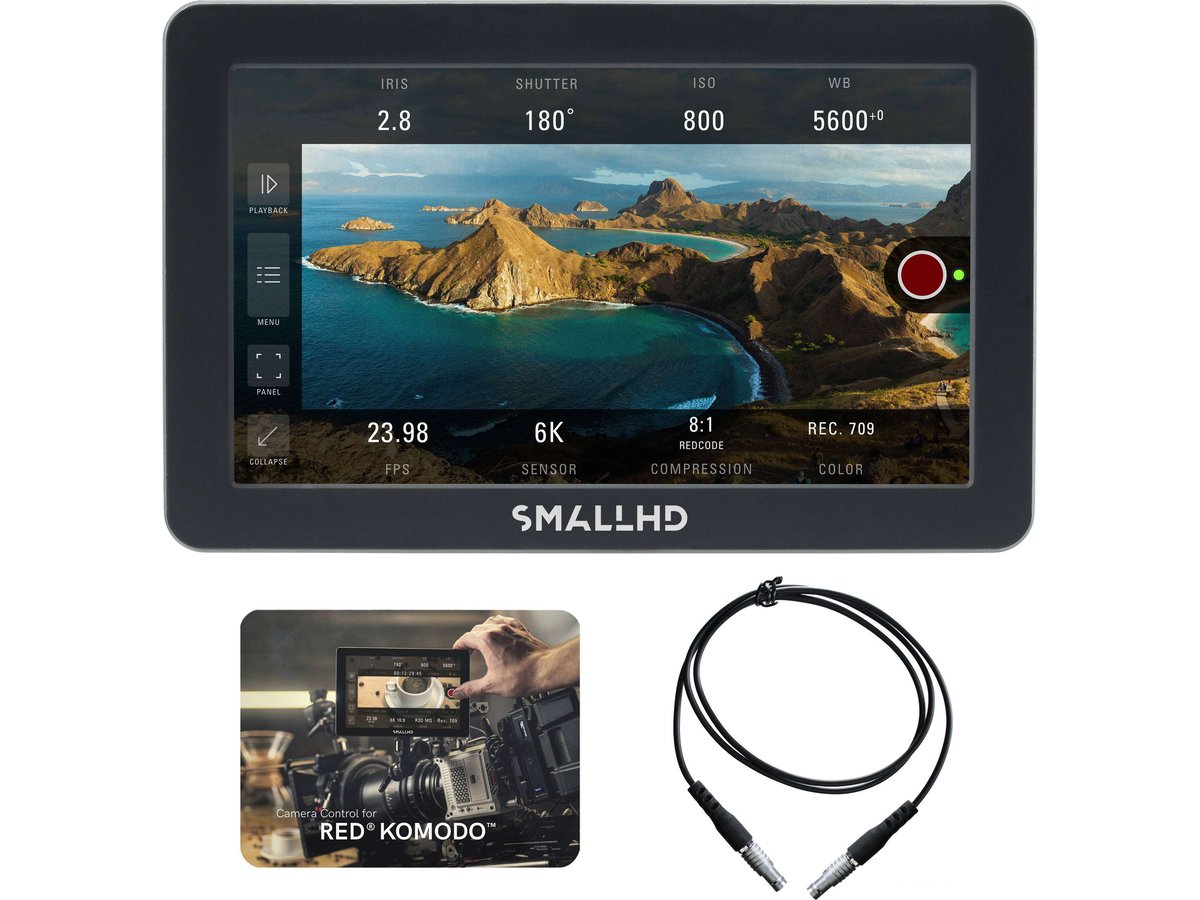

This kit comes with a Focus Pro Monitor, Camera Control for RED® KOMODO™ (software license), and a KOMODO Control Cable (5-pin to 9-pin Connector). Designed specifically to pair with the RED® KOMODO™, Focus Pro maintains the same reliable SmallHD clarity, vivid color detail, and dynamic touchscreen camera control while offering an equal balance between durability and lightweight design. Unlock access to all camera features available thru RED Camera Protocol (RCP2) with the included software activation instructions, and tap into the internal camera settings with intuitive touchscreen configuration tools.

Robust Design
The elegance of strength.

Focus Pro fuses perfectly with KOMODO's compact, featherlight body: Constructed with a sturdy, milled aluminum chassis that weighs only 9.6 oz, Focus Pro OLED withstands heavy everyday operation and frees you to operate on the fly, without the restrictions of weight. 3 x ¼”-20 mounting points make it easy to secure to a rig, and the new Focus Pro Hinge Mount (sold separately) gives KOMODO users the flexibility to tilt the monitor for optimal viewing.

Brilliant LCD Monitoring
See everything.

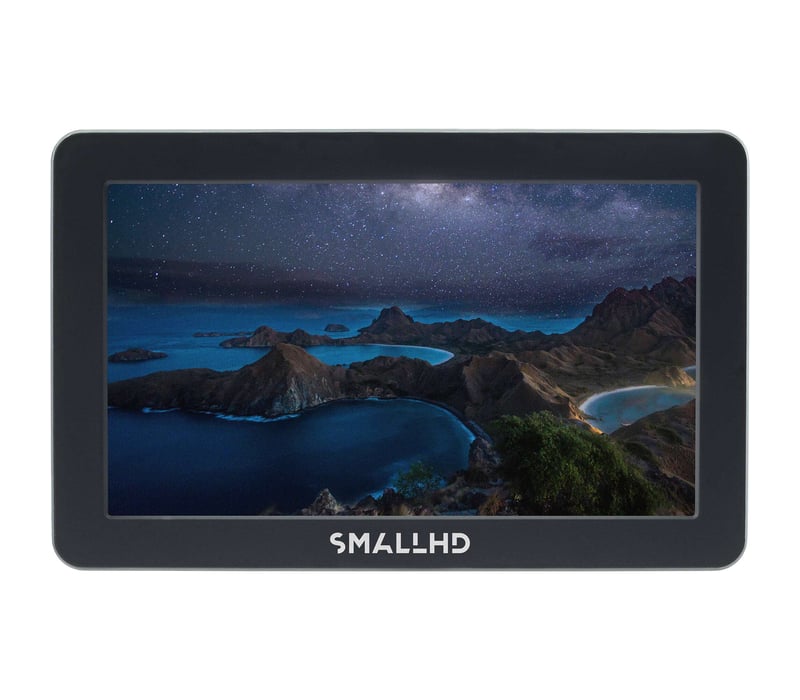

Focus Pro offers a radiant 5-inch display with sharp resolution and bright daylight visibility for accurate image control in every environment. The SDI input provides real-time monitoring, and retracting menus offer an unobstructed field of view, so you see exactly as KOMODO sees.

SmallHD PageOS 4
Every tool you need for absolute precision.

With the power of the new PageOS 4 software, utilize all of the dependable SmallHD features such as customizable frame guides, Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and--as always--achieve tack-sharp critical focus with SmallHD Focus Assist.

Extended Energy
Once you start, never stop.

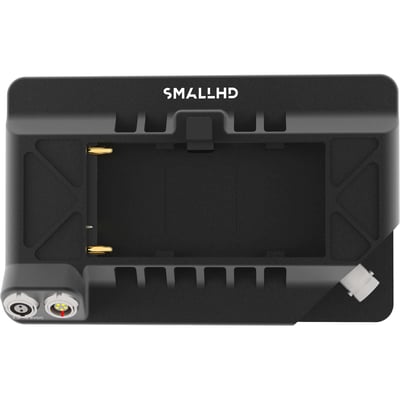

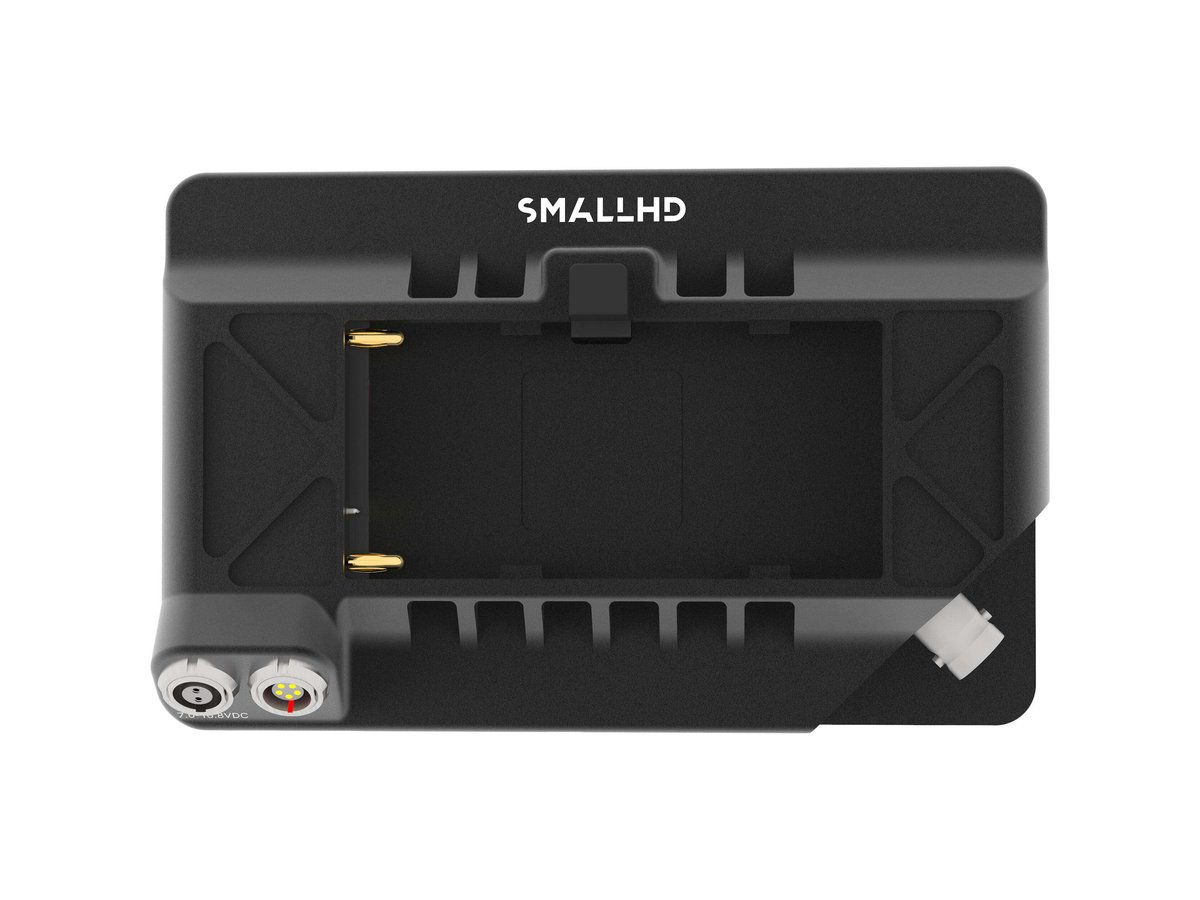

Low power consumption allows you to run without excessive swapping. A redesigned battery mount provides a stronger, more secure attachment for all compatible L Series type batteries, while the monitor may also be powered by an external source via a 2-pin input.

Camera Control Access
Access all camera features available thru RED Camera Protocol (RCP2)

Software Features

  • Pixel zoom: 2x and 4x with smooth pan via pinch-zoom gesture

  • Frame guides: Preset aspect ratios and customizable

  • DSLR scale: Canon 5D Mark II and 7D

  • Custom scale: Underscan only

  • Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x

  • Image rotate: Automatic or manual control

  • Image flip: Automatic or manual control

  • Focus assist: User-adjustable color style and intensity

  • Peaking: User-adjustable intensity

  • False color spectrum: ARRI-style and user customizable

  • Zebra: dual, user configurable

  • Waveform: Luma and RGB style, fully user customizable with region-of-interest highlighting

  • Vectorscope: Yes

  • RGB parade: User customizable

  • Histogram: Luma and RGB style

  • Image capture: Dedicated button and image gallery

  • Custom LUTS: Loadable as looks on pages or as system-wide color calibration via the settings menu

  • LUT downstream: Applied on output preview page

  • LUT import: Via SD card or USB storage device

  • Image overlay: Opacity slider and blink setting

  • Audio meters: Up to eight channels

Display Features

  • SD card slot for loading custom LUTs

  • Wide color gamut display

  • 2x and 4x pixel zoom

  • 1.33x, 1.5x, 1.66x, and 2.0x anamorphic de-squeeze

  • Automatic/manual image flip and rotation

  • Waveform, zebra, and vectorscope

  • Preset and custom frame guides
